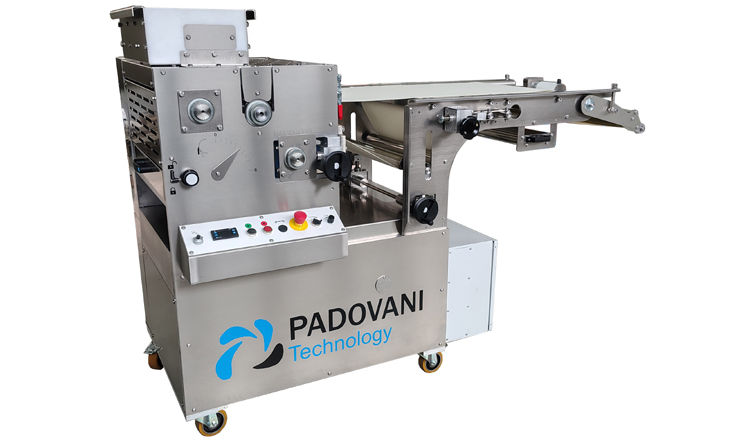

RWN Rotary Moulding Machine
For your (tigth) tunnel oven
For tight ovens (500 - 600 - 700 mm)
| Code | Working Width [mm] | Installed Power [kW] |
Packaging dimensions (aprox) [mm] |
Gross Weight [kg] |
Max hourly production * [kg/h] |
| RWN 500 | 500 | 2 | 1500x850xH1350 | 480 | 500 |
| RWN 600 | 600 | 2 | 1500x950xH1350 | 530 | 600 |
| RWN 700 | 700 | 2 | 1500x1050xH1350 | 600 | 700 |
* = the production (kg/h) can vary considerably depending on the size and the thickness of the biscuits to be made
Advantages:
• High productivity: the RWN model allows you to produce large quantities of biscuits in a short time, optimizing working times and increasing profitability.
• Impeccable quality: the sturdy structure, high-quality components and cutting-edge technology guarantee perfectly defined biscuits, with a uniform consistency and an inviting appearance.
• Flexibility: the RWN model can be used with a wide range of moulds, to create biscuits of different shapes, sizes and flavours, satisfying every creative need.
• Ease of use: the intuitive control panel and precise adjustment functions make the RWN an easy machine to use even for less experienced operators.
• Safety: the RWN model complies with CE safety regulations, ensuring a safe and protected working environment.
Technical features:
• Heavy gauge aluminum frame: machined on machine tools to ensure maximum assembly precision and impeccable stability during operation.
• Closing and protection carter in AISI 304 stainless steel: for superior resistance to corrosion, wear and high temperatures, guaranteeing maximum hygiene and safety.
• Four swivel wheels with parking brake: to facilitate moving the machine in complete safety, even on uneven floors.

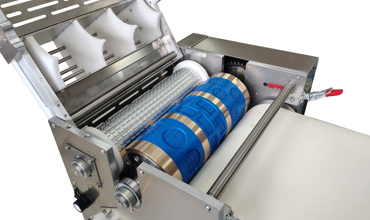

• Hopper tilting on one side: for easy mold change, thanks to the quick couplings and automatic blocking of the mold roller.
• Large diameter feed roller: for better mold feeding and more uniform production.
• Steel pressure roller with food-grade rubber coating: for delicate and precise pressing of the dough, ensuring perfect definition of the biscuits.
• Knife in hardened and ground stainless steel: with adjustable position via knob, for a clean and precise cut of the dough. The movement of the knife follows the surface of the mold, ensuring a flawless finish of the biscuits.

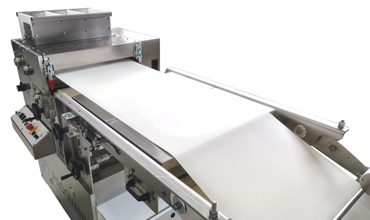

• Closed loop cotton belt: for a resistant work surface, which ensures perfect separation of the biscuits.
• Stainless steel scraper for belt cleaning: with drawer underneath for collecting dough scraps, for quick and easy cleaning.
• Main motorization with gearmotor and inverter: for precise speed regulation and optimal performance in every production phase.
• One bronze mold roller with inserts in non-stick food-grade plastic material: engraved with 1 shape chosen by the customer, to create custom-shaped biscuits.
• Control panel on the machine: with working frequency display, start/stop button, emergency button and potentiometer for speed variation, for intuitive and precise control of the machine.
Some available optional:
• Motorized roller on the delivery pen: with independent motorization and speed adjustment, to facilitate the detachment of the biscuits from the cotton belt.
• Motorized belt under the scraper: for the automatic evacuation of dough scraps, for an always clean and tidy workstation
• WASH system for the grooved roller: for more info click on the below button NEW OPTIONAL
WASH System --> More info
Why choose the RWN model ?
High productivity
Ease of use: intuitive control with digital panel and mechanical adjustments all on the working side
Simple cleaning and sanitization: stainless steel surface, tilting hopper and scraper for cleaning the belt
Versatility: engraved mold roller with one or more shape of your choice
Precise control: Roller, belt and delivery small roller speeds independently adjustable
Minimum maintenance: gearboxes lubricated for life and bearings with dustproof shields.
