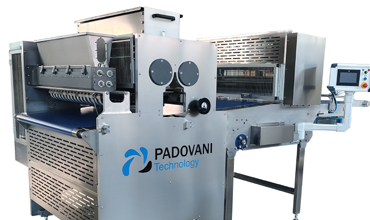

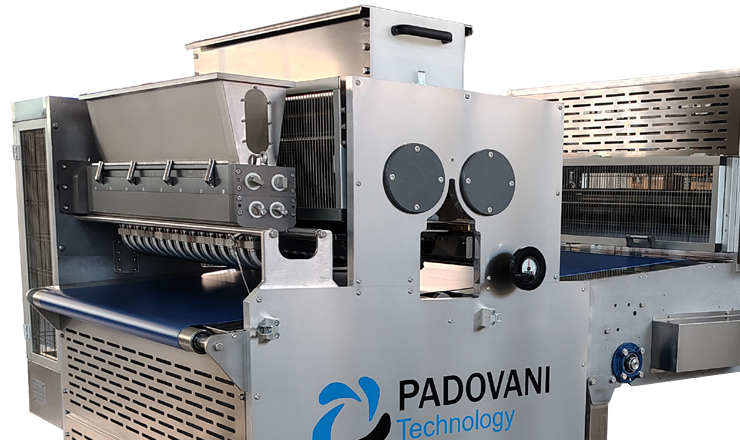

Extruder EX - Industrial

Versatility and precision for all your creations

Are you looking for a flexible and high-performance solution to create a wide range of biscuits? Our extruder machine is the perfect answer to your needs.


Unique Features

  • Unlimited versatility: Produces filled, wire-cut biscuits, fig-bars and much more, customizable in infinite variations.
  • Superior quality: The aluminum frame and high-strength steel rollers ensure long life and flawless products.
  • Absolute precision: The filling extrusion group, with two independent pumps, allows you to create two-coloured biscuits and manage different consistencies.
  • Ease of use: Intuitive touchscreen control panel simplifies recipe management and maintenance.
  • Efficient cleaning: The easily removable components and the stainless steel hopper facilitate cleaning operations.




Customize your production

Thanks to the wide range of accessories available, you can adapt the machine to your specific needs:
  • Wire cut system: For perfect and uniform biscuits.
  • Guillotine: Ideal for fig bars and products of variable sizes.
  • Decorating rollers: Add a touch of originality to your cookies.
  • Conveyor Systems: Connect the machine to the oven for continuous production flow.

Main technical features

  • Dough extrusion head composed of 2 thick steel rollers engraved with proper groove, high – resistance surface treatment, anti-wear and anti-corrosion. Rollers rotation given by gear motors lead by inverter groups.

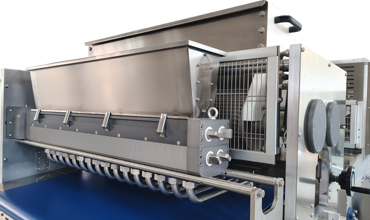

  • Filling extrusion group composed of 2 pumps, each with 4 extractable rollers for a correct cleaning, a removable hopper and connecting pipes to the forming mould. It’s possible to feed the two pumps with two different kind of filling to obtain half of the products in the line width with one of the fillings, and half with the other.
  • Stainless steel dough containment hopper, easily removable for cleaning.
  • Filler block is made with separate channels to allow a perfect balance of the weight of the output product.
  • Product forming mould made of single molding chambers, extrusion nozzles and couplings for the filling delivery pipes
  • Diaphragm shutter product closing mould composed of an oscillating support on which the closing diaphragms are mounted. Closing mould can be easily removed from the machine to install any other accessories
  • Touch Screen control panel on the machine side, with display of machine functions, recipe setting, alarm management
With the appropriate accessories, the machine can produce a wide range of products:
  • Filled products close with diaphragm (soft center) of adjustable length
  • Wire cut products with or without inclusions
  • Stuffed products cut with guillotine before (or after) cooking (fig-bar)
All products can be realized in 2 colors in two halves


Code Standardexits [NR] Installed power
[kW]
Diaphragm max. speed*
[closings / min]
Wire cut max. speed *
[cuts / min]
Diaphragm max. production*
[pieces / h]
MAX production wire cut *
[pieces / h]
Dough hopper capacity
[kg]
Filling hopper capacity
 [kg]
EX 800 12 5 100 120 72.000 86.400 55 30
EX 1000 14 7 100 120 84.000 100.800 65 38
EX 1200 18 9 100 120 108.000 129.600 75 45
EX 1500 22 12 100 120 132.000 158.400 90 55
* = these data can vary considerably depending on the product to be made and the technical characteristics of the supply








Available accessories

  • Wire cut group
  • Guillottine
  • Smooth roller for flattening products
  • Engraved decorating roller with texture of your choice
  • Mould extraction and filler block trolley
  • Accessories for two-color formats in two halves
  • Guides for long closed products
  • Washover device
  • Conveyor belt for the transfer of biscuits to the oven (in case of installation of the machine at the head of the oven)
  • Other accessories available on request according to the type of product to be made

The advantages of choosing our machine

  • Increased productivity: Produce large quantities of biscuits quickly and efficiently.
  • Cost Reduction: High quality materials and rugged construction for long life.
  • Flexibility: Adapt the machine to your ever-changing needs.

Don't miss the opportunity to create unique and delicious cookies!










 the WT model is a simplified version that allows you to produce ONLY WIRE CUT biscuits
